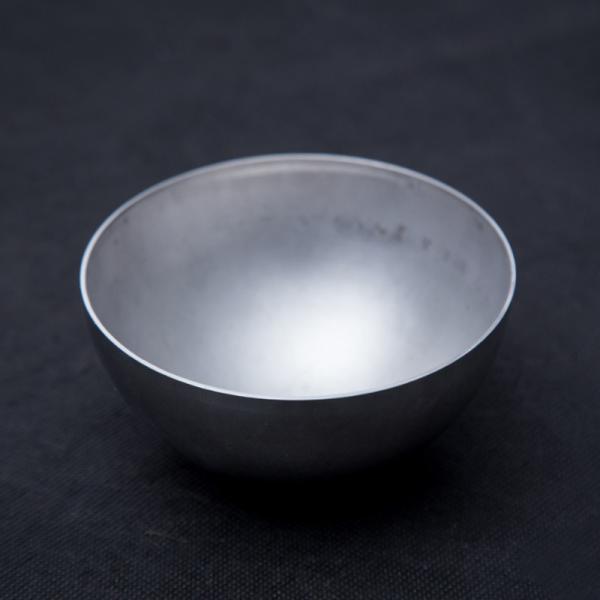

40mm-3000mm Carbon Half Ball Stainless Steel Hemisphere Metal Hemisphere
hemispherical head is often made with carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked.
Our hemispheres are of extra smooth contour, so that agitator blades swipe the surfaces much more effectively.
This is the sandblasting treatment surface.

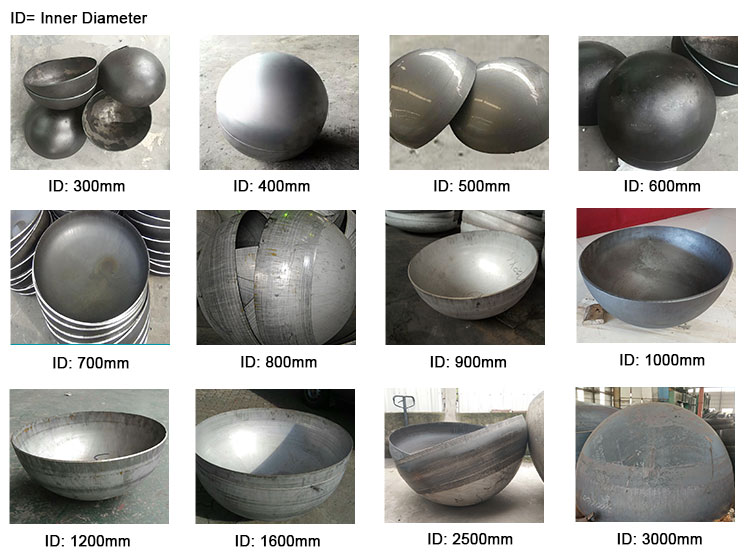

Our Hemispherical heads have a variety of sizes and can be processed according to customer's requirements.
This type of hemispherical tank heads or hemispherical dish ends are made in most popular sizes and thicknesses.
Size range: 50mm-10000mm with integral formed,larger sizes with subsection formed can be specified.
Thickness: 3mm-200mm
1) Carbon steel fitting and alloy steel fitting
2) Standard: ASTM, ANSI, JIS, DIN ,EN10253
3) Material: A234WPBA234 WPL3/L6 P1 P11 P5 P91 304 304L 316 316L
4) Size: 1/2"-36"
5) Angel:30,45-degree,60,90-degree,180-degree
6) Surface treatment: transparent oil, rust-proof oil, hot galvanizing
7) Price: very competitive
8) Special design available as customer'srequest
9) Nipple ,Union fitting,and socket
Specification
| Size | 59-7000mm (2.3”-275.5”) |
| Wall thickness | 3mm-100mm (0.12”-3.9”) |
| Applicable standard | ASME , ASTM, MSS ,JIS , DIN , EN, GB,etc. |
| Material | According to customers requirement |
| Connection | Butt-welding |
| Applications rang | such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
| Packaging | Wooden cases ,wooden pallet plastic bag or as per customers requirement |

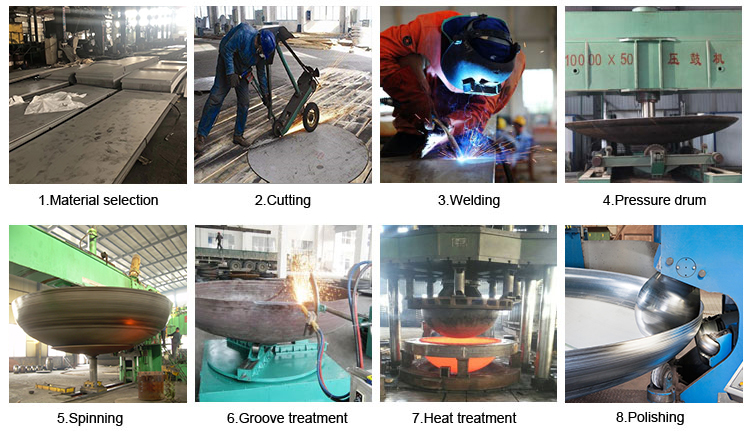

Metal Hemisphere Production
Hemispherical Head Packing
How to send an Inquiry For Hemisphere
Information necessary to order heads:
- Quantity
- Type of Head
- Dimensional Information (O.D., I.D., Thk., S.F., etc.)
- Material Specifications
- Special Tolerances or Requirements
- Bevel Requirements
Abbreviations for sketches:
- O.D. — Outside Diameter
- I.D. — Inside Diameter
- Thk. — Thickness (nominal or minimum)
- O.A.H. — Overall Height
- I.H. — Inside Height
- S.F. — Straight Flange
- R. — Radius
- D.R. — Dish Radius
- I.K.R. or I.C.R. — Inside Knuckle (or corner) Radius
- I.D.D. — Inside Depth of Dish

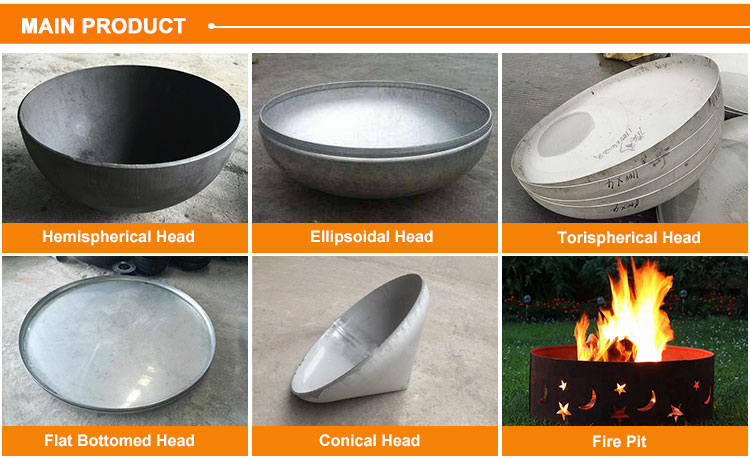

Besides Half Metal Sphere We also have other type products
